C2 MINI |
Model parameters |
Name |
CV-100 |
Model |

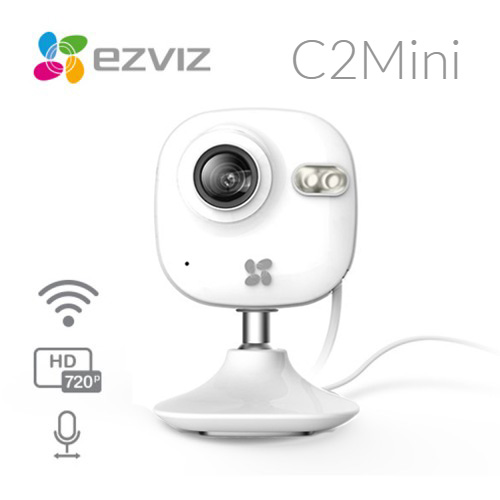

720P Indoor Mini Wi-Fi Camera |
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Minimum Illumination |
0.02Lux @(F/2.2,AGC ON), 0 Lux with IR |
Shutter |
1/30 sec to 1 / 100,000 sec |
Lens |
2.4mm@F/2.2, Horizontal View Angle: 115°, Diagonal View Angle: 130° |
Lens Mount |
M12 |
Day & Night |
IR cut filter |
DNR |
3D DNR |
IR Range |
Up to 33 feet (10m) |
WDR |
Digital WDR |
Compression Standard |
Video Compression Standards |
H.264 Main profile |
Audio |
Built-in Microphone |
Video Bit Rate |
Hi-Def, Standard and Basic, Adaptive bit rate |
Audio Compression Rate |
Adaptive Bit rate |
Image |
Max. Resolution |
1280 x 720 |
Frame Rate |
Up to 25fps(1280*720) |
Network Functions |
Storage |
Support Micro SD card (≤64GB) |
Smart Alarm |
Smart Motion Detection |
One-key Configuration |
SmartConfig (Wi-Fi One-key configuration) |
Interface Protocol |
Ezviz Cloud Proprietary Protocol |
General Function |
Dual Stream, Mirror Image |
Wireless Parameters |
Wireless Standard |
IEEE802.11b, 802.11g, 802.11n |
Frequency Range |
2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth |
Support 20 MHz |
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate |
802.11b: 11Mbps, 802.11g :54Mbps, 802.11n :150Mbps |
General Specifications |
Operating Conditions |
14⁰F to 122⁰F (−10 ℃ ~ 50 ℃), humidity less than 95% (non-condensing) |
Power Consumption |
5VDC ± 10%, 3.5W Maximum |
Dimensions (inch) |
3.58 x 1.96 x 0.98"(91mm x 50mm x 25mm) (contain bracket) |
Weight |
0.24lb (110g) |
